sampling resistance
+
  • sampling resistance

sampling resistance

Category: sampling resistance

Online Inquiry Contact Us
  • Product Description
  • Product Application
  • Shape and size
  • power attenuation curve
  • Type
  • Model Description
    • Commodity name: sampling resistance

    1. Low resistance, low inductance

    2. Open structure

    3. High precision

    4. Lead free/RoHS compliant

  • 深圳市竞达成电子有限公司


  • Category Style Rated Power Rating Resistance Range Range(Ω) Overall Dimension Shape Size
    RM Hmax C ± 0.5 ∮ D
    FLA50-1 1 R003-R05 10 17 4.5 0.8
    FLA50-2 2 R003-R05 15 20 4.5 0.8
    FLA50-3 3 R003-R10 20 25 4.5 0.8
  • Project Performance Requirements
    Precision ±1%(F) 2%(G) 5%(J)

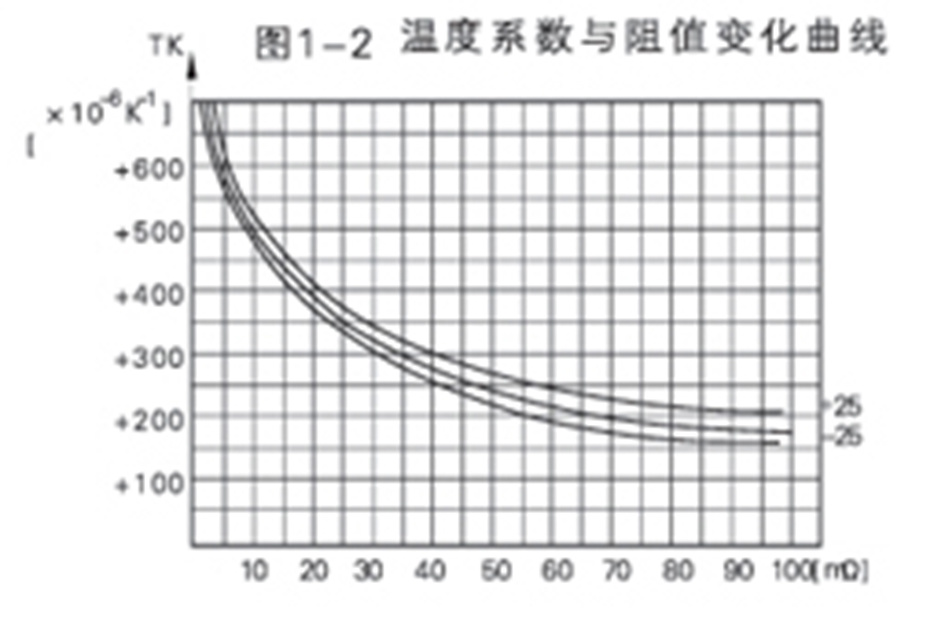

    Temperature Coefficient See Figure 1-2
    Temperature Range -55~300 ℃
    Power Reduction When the ambient temperature rises from 70 ℃ to 300 ℃, allowable load of resistor is reduced from 100% of rated power to 0%
    long-term test △ r ≤ 2% r
    steady-state test △ r ≤ 2% r
    terminal strength △ r ≤ 0.5 r
    Welding Heat Resistance △R ≤ ± 0.5%R
    Weldability IEC68-2-20(1968) Precision Welding Method, 235±0.5 ℃,2±0.5S,solder bath method
